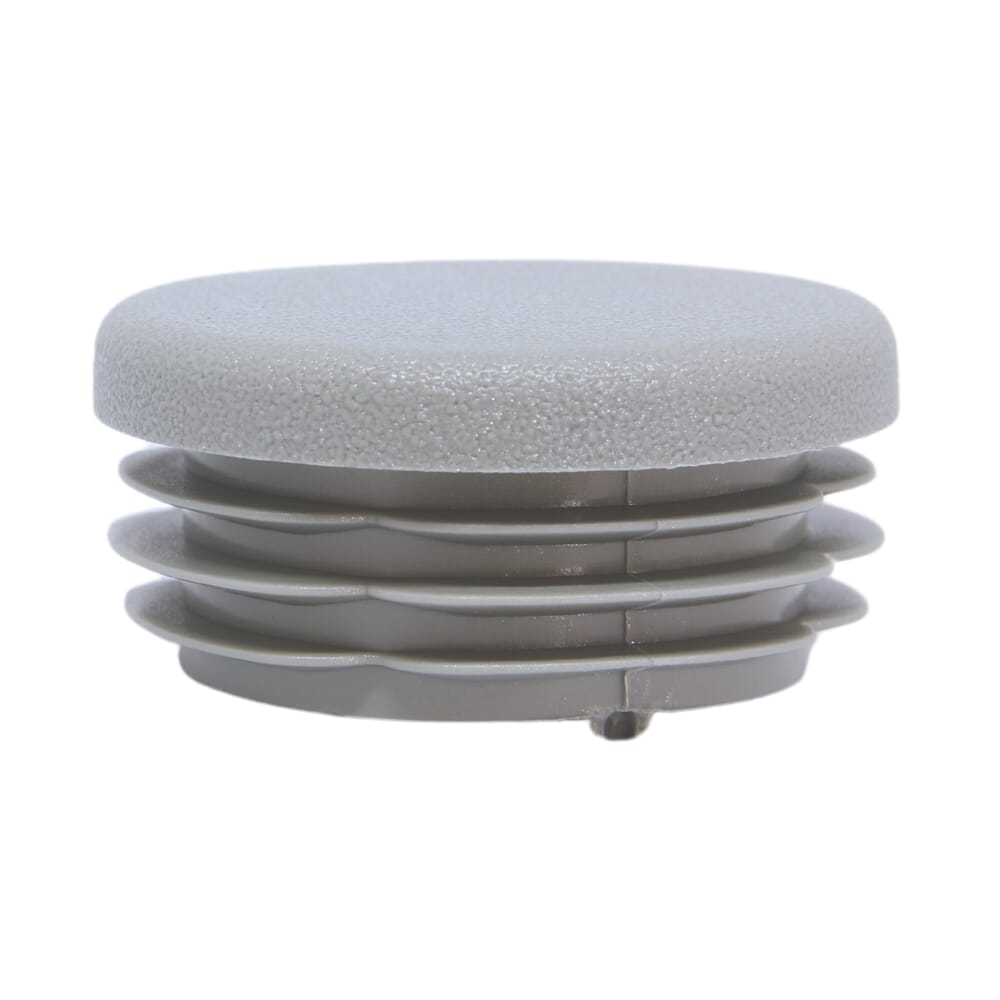

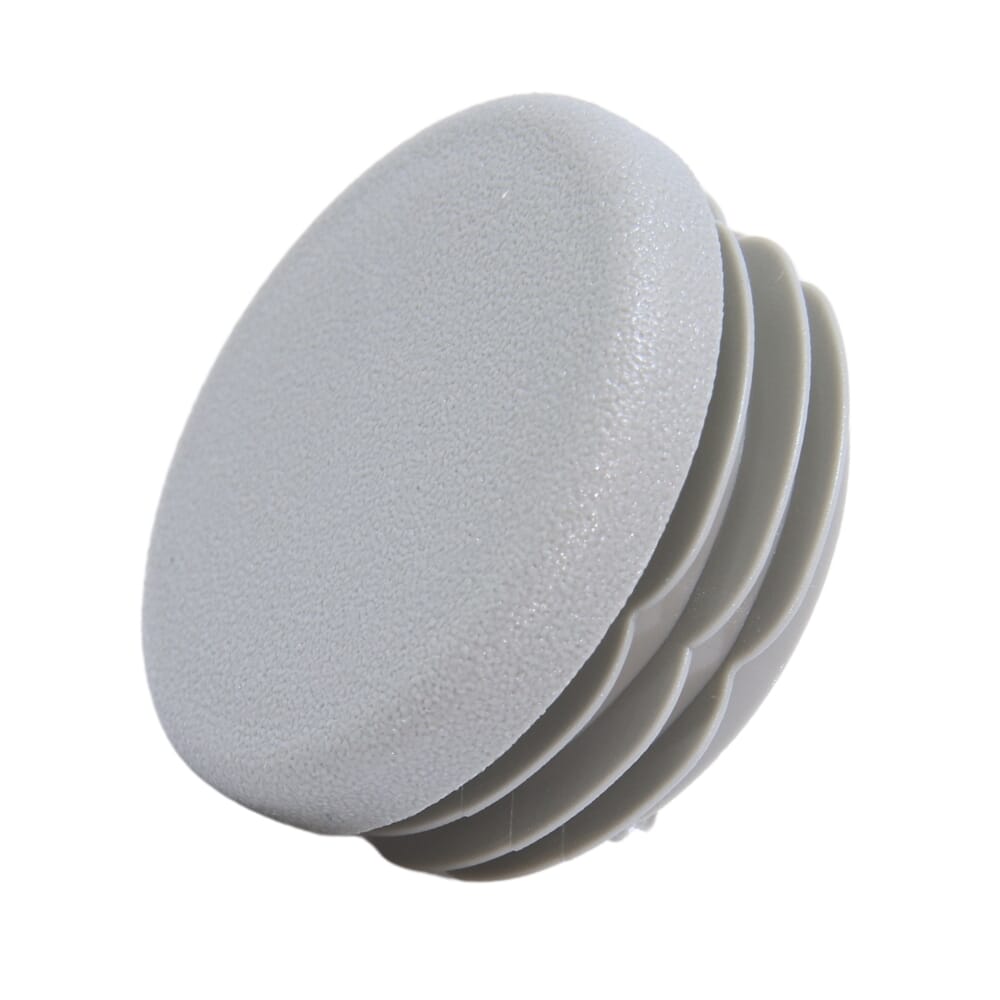

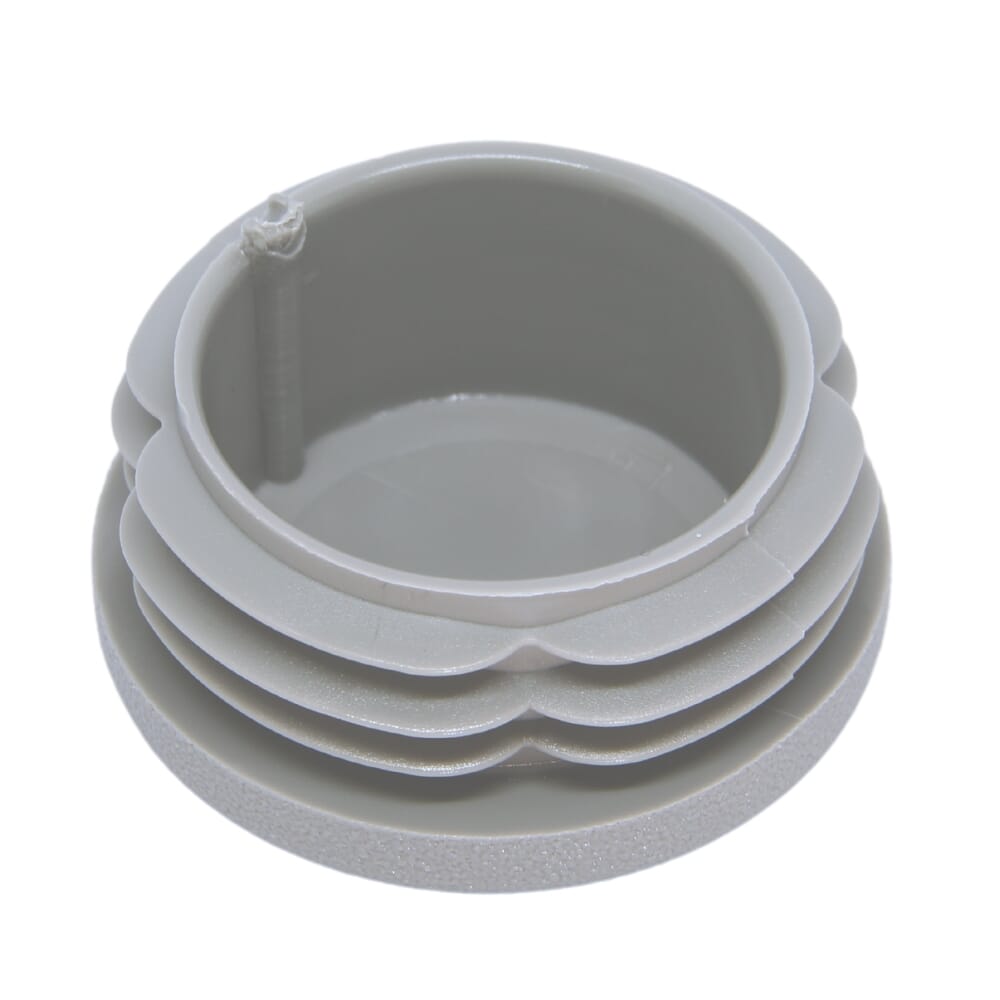

Lamellar plugs round 10x0,8-1,5
PE, grey ~ RAL 7042
Part no. 300012134 / Old item number: 0850100002
The surface of the lamellar plugs has - at the discretion of the manufacturer - a smooth or a spark-erosion structure. The ribs (continuous or discontinuous) are not suitable for sealing against liquids.
€0.10
from 100
€0.10 / piece
from 200
€0.09 / piece
from 500
€0.08 / piece
from 1000
€0.05 / piece
Minimum order quantity: 100
RoHS
RoHS compliant
colour
grey
country of origin
Germany
customs tariff number
39235010
material
PE
previous part number
0850100002
weight
0,43 g
bore diameter
7,0 - 8,4 mm
head diameter
10 mm
head height
3,5 mm
head shape
flach
immersion depth
11,5 mm
lamella distance
2,0 mm
pipe external diameter
10 mm
pipe wall thickness
0,8 - 1,5 mm
shape
round
stem form
ribbed / lamellar
version
standard
AxS
10x0,8-1,5 mm
B
2,0 mm
C
3,5 mm
H
11,5 mm
