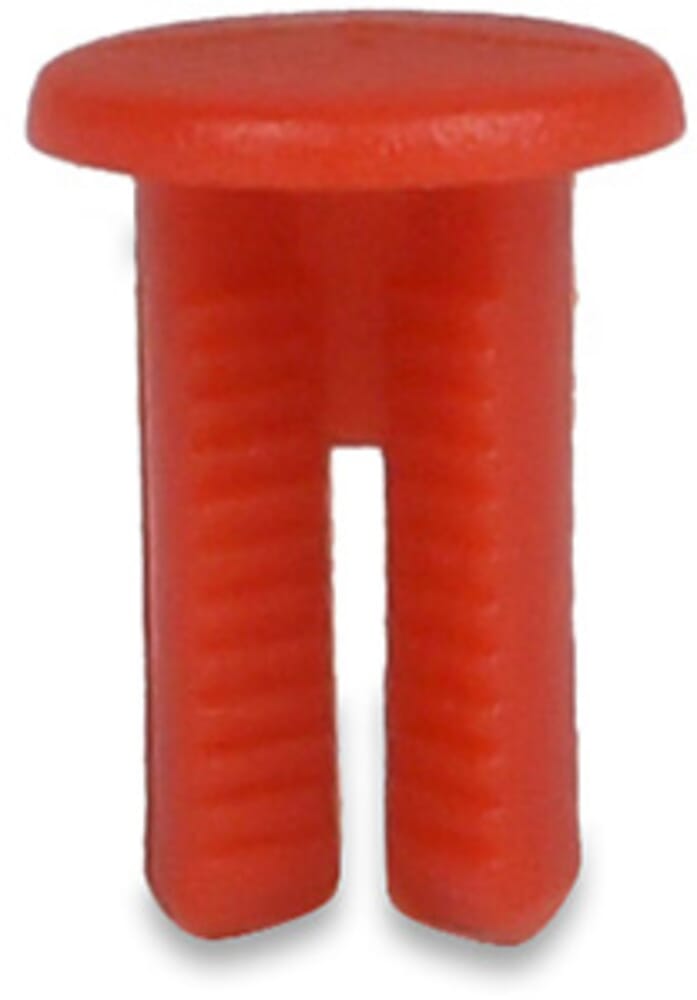

Snip&Snap 7,0-7,2/20,2-34,4
PA, red ~ RAL 3020
Part no. 300012750 / Old item number: 0962010124
Quick assembly without tools. Suitable for combining sheets, plates etc. Two parts are needed for every connection! For thin clamping width (from 0.9 mm) you have to use a snap-ring.
€0.38
from 50
€0.38 / piece
from 100
€0.32 / piece
from 200
€0.29 / piece
from 500
€0.24 / piece
from 1000
€0.17 / piece
Minimum order quantity: 50
RoHS
RoHS compliant
colour
red
country of origin
Great Britain
customs tariff number
39269097
material
PA
previous part number
0962010124
weight
0,46 g
bore diameter
7,0 - 7,2 mm
head diameter
10 mm
head height
1,7 mm
immersion depth
19,8 mm
material thickness
20,2 - 34,4 mm
version
Snip&Snap

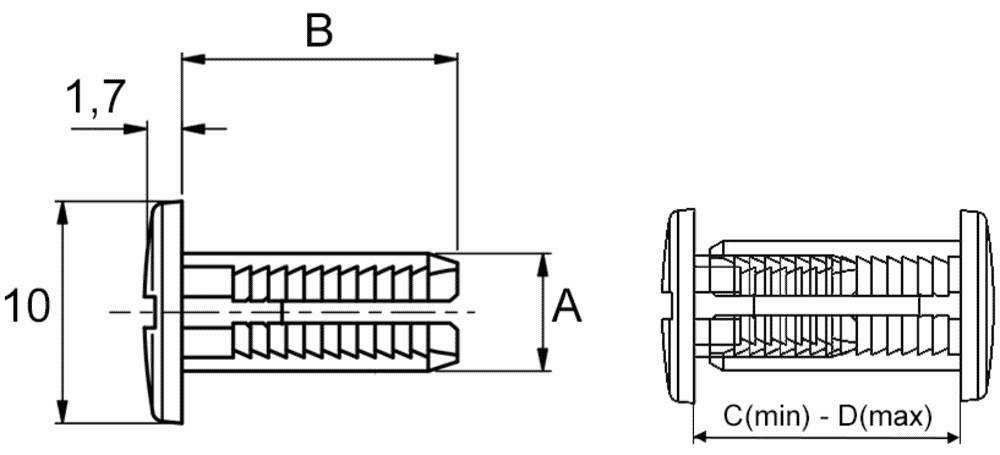

A
7,0 - 7,2 mm
B
19,8 mm
C - D
20,2 - 34,4 mm
