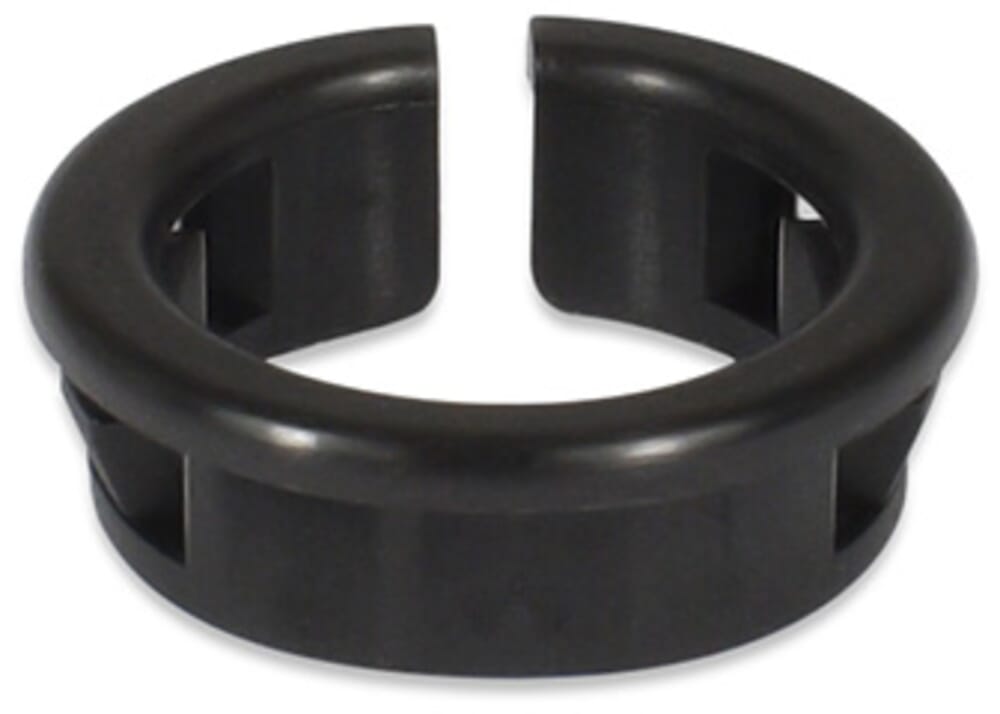

Snap-fit bushes Ø 22,0
PA 6.6, black, UL94-V2
Part no. 300003575 / Old item number: 0401022
Simple unilateral finger print assembly - Protects cables and hoses from damage - Suitable for installation in holes with previously mounted cables - Ideal for installation of cables with pre-assembled plug Fits wall thickness 0,8 – 1,6 mm
€0.39
from 50
€0.39 / piece
from 100
€0.34 / piece
from 200
€0.30 / piece
from 500
€0.25 / piece
from 1000
€0.18 / piece
Minimum order quantity: 50
RoHS
RoHS compliant
colour
black
country of origin
China (People's Republic)
customs tariff number
39269097
material
PA 6.6
previous part number
0401022
assembly hole diameter
22,0 mm
external diameter
25,8 mm
flammability
UL 94V-2
immersion depth
5,5 mm
internal diameter
19,3 mm

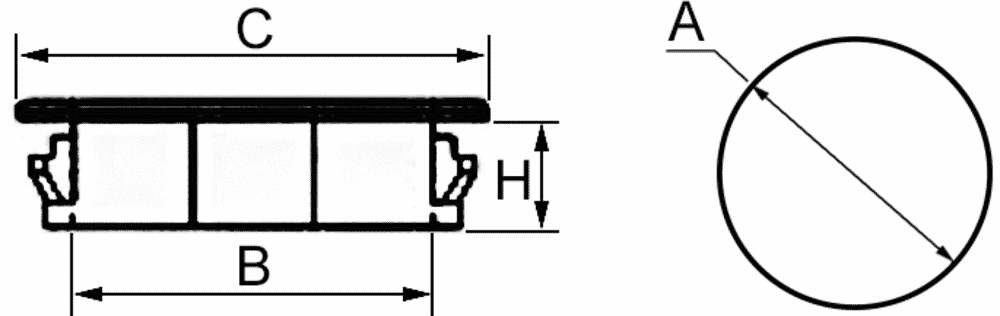

A
22,0 mm
B
19,3 mm
C
25,8 mm
H
5,5 mm
