RoHS
RoHS compliant
colour
black
country of origin
Spain
customs tariff number
39259010
material
PA 6 reinforced
previous part number
6420108555
weight
102,2 g
bore diameter
9,0 mm
diameter
80,0 mm
diameter 1
27,0 mm
height
17 mm
height 2
111 mm
max. load capacity
1,5 kg
thread length
77,0 mm
thread size
M12
thread type
stainless steel thread (AISI 304)
version
with ball joint

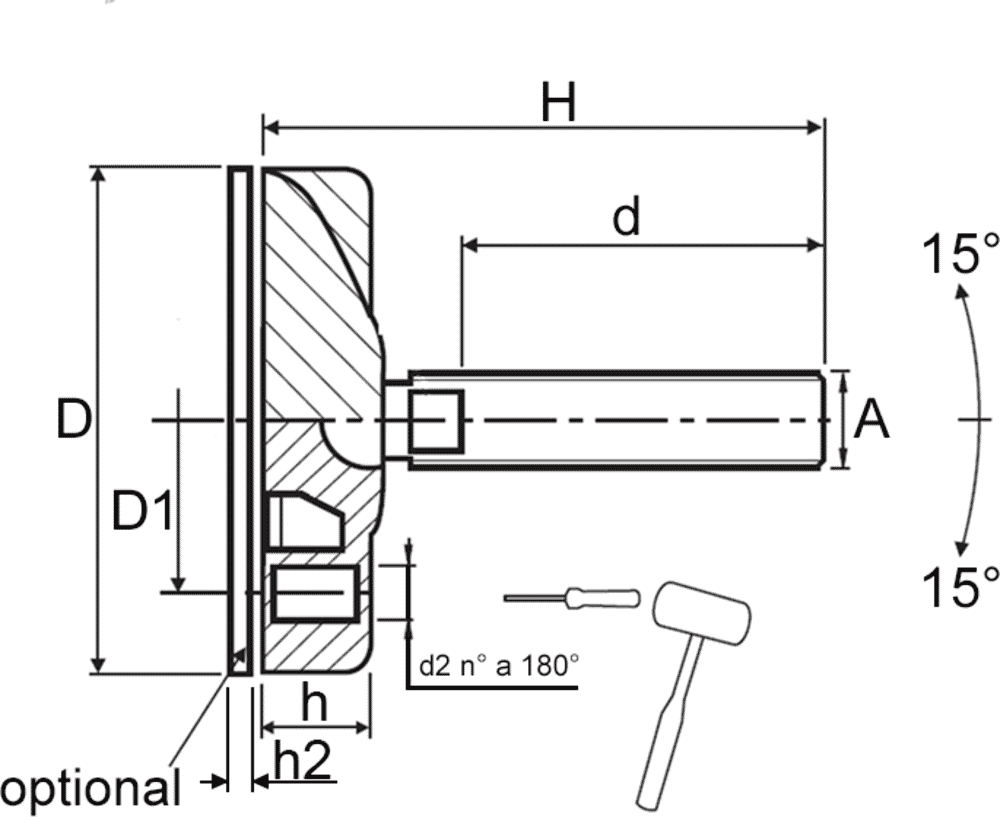

A
M12
D
80,0 mm
D1
27,0 mm
H
111 mm
d
77,0 mm
d2
9,0 mm
h
17,0 mm
kg
1.500 kg
