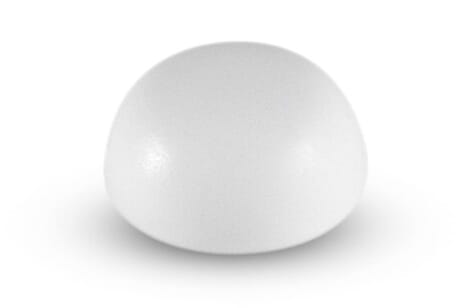

Caps Ø 8,5, type 61
LDPE, white
Part no. 300002428 / Old item number: 0061032113
Caps for snap-on rings. These caps are applicable for ring types: 60, 61, 63 and 65.
Cap type 61 is suitable for the following screw types:
DIN 84, 85, 95, 96, 97, 439, 963, 964, 965, 966, 6912, 7963, 7971, 7972, 7981, 7982, 7983, 7984, 7991, 7995, 7996, 7997
ISO 1207, 1481, 1482, 1580, 2009, 2010, 4035, 7046, 7047, 7049, 7050, 7051, 10642
***Dimension A has to match the dimension A of the snap-on rings!***
€0.09
from 100
€0.09 / piece
from 200
€0.08 / piece
from 500
€0.07 / piece
from 1000
€0.05 / piece
Minimum order quantity: 100
RoHS
RoHS compliant
colour
white
country of origin
Great Britain
customs tariff number
39235090
material
LDPE
previous part number
0061032113
weight
0,1 g
appropriate for
all screws
external diameter
10,5 mm
height
4,3 mm
internal diameter
8,5 mm
thread size
M3
A
8,5 mm
B
10,5 mm
C
4,3 mm
D
M3
