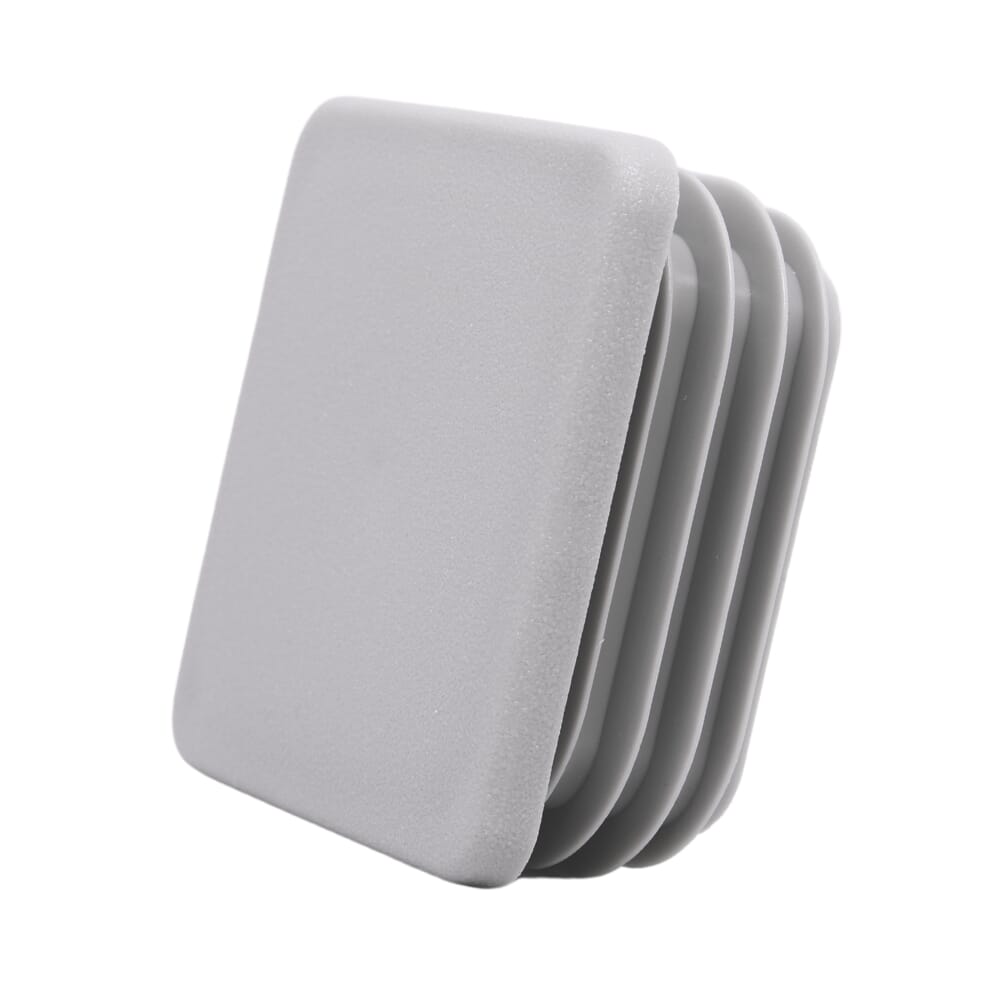

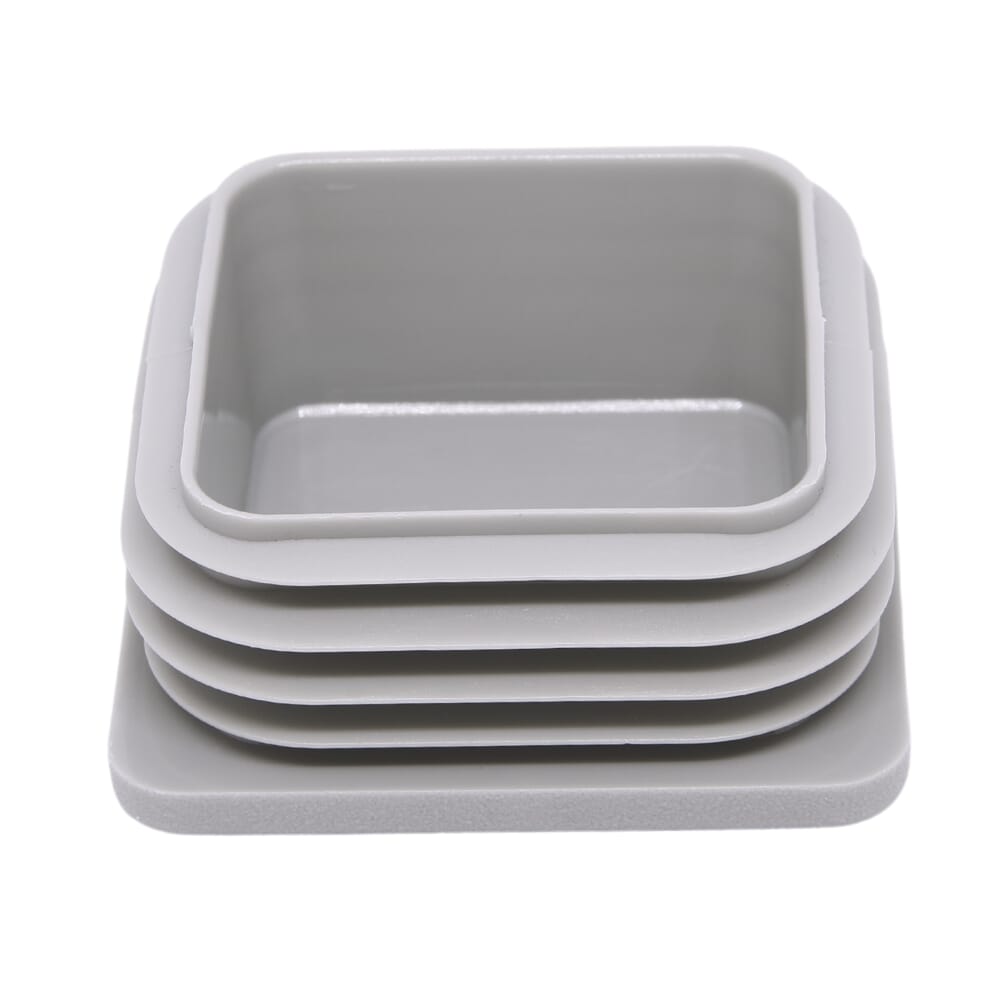

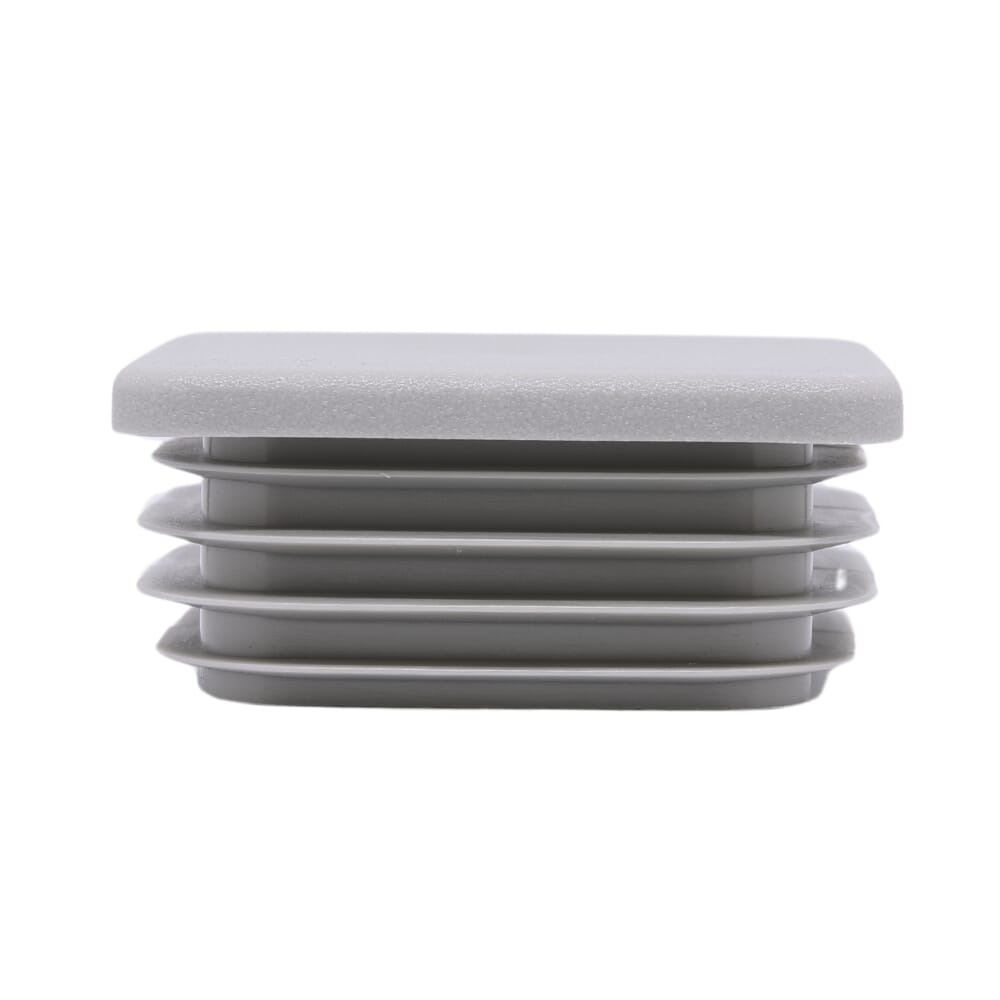

Lamellar plugs square 50/50x0,8-3
PE, grey ~ RAL 7042
Part no. 300011175 / Old item number: 0560500002
The surface of the lamellar plugs has - at the discretion of the manufacturer - a smooth or a spark-erosion structure. The ribs (continuous or discontinuous) are not suitable for sealing against liquids.
€0.44
from 100
€0.44 / piece
Minimum order quantity: 100
RoHS
RoHS compliant
colour
grey
country of origin
Germany
customs tariff number
39235010
material
PE
previous part number
0560500002
weight
9,8 g
external pipe dimension
50 mm
head height
5 mm
immersion depth
14,5 mm
lamella distance
3,0 mm
pipe wall thickness
0,8 - 3,0 mm
shape
square
version
standard
AxS
50x50x0,8-3 mm
B
3,0 mm
C
5,0 mm
H
14,5 mm
