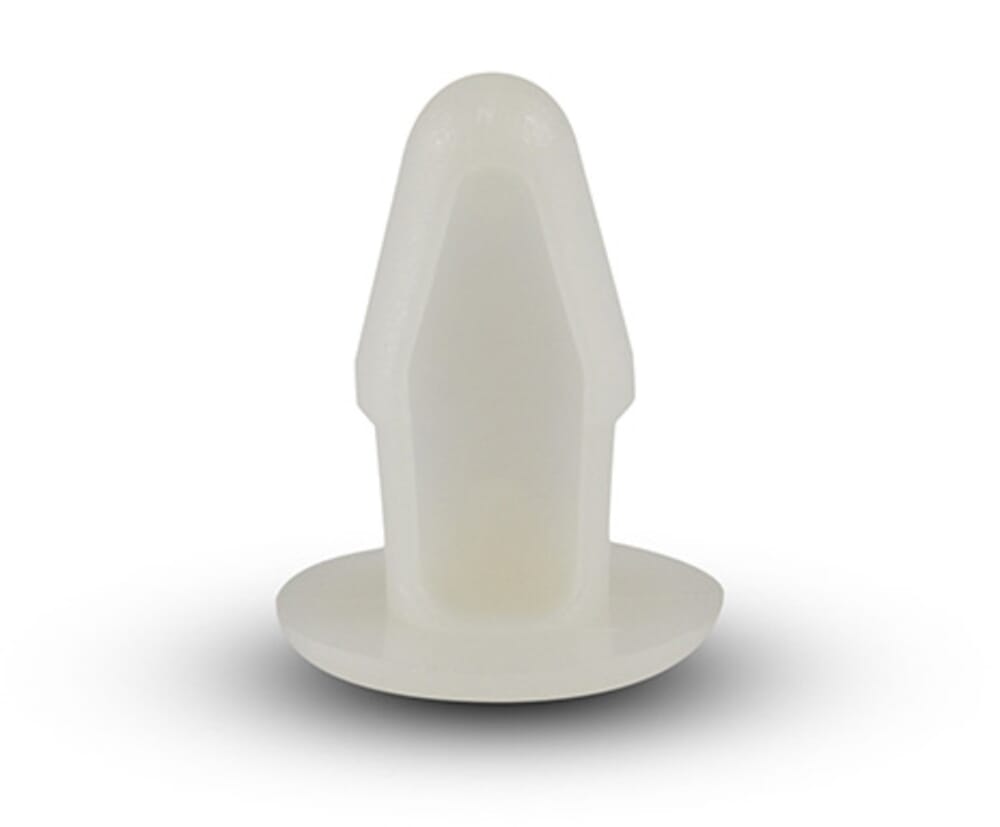

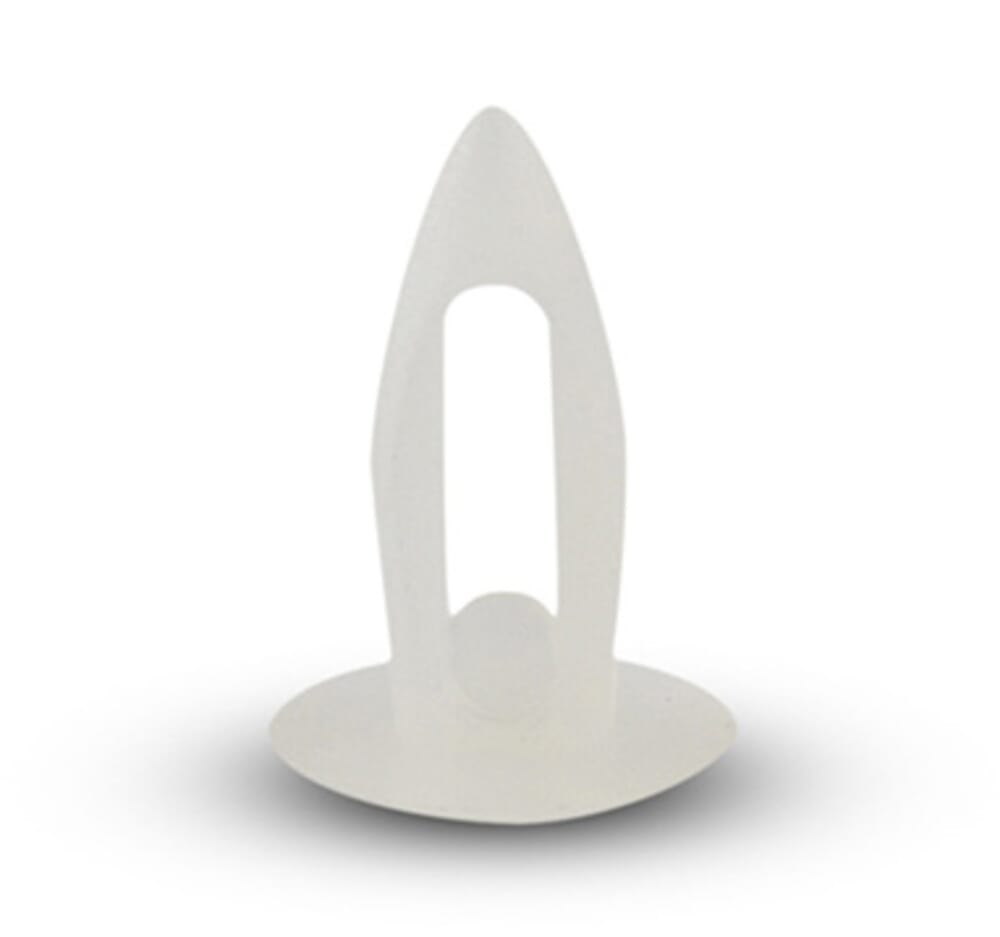

Rivets 5,0/1,5-3,5
PA, natural
Part no. 300012537 / Old item number: 0910004000
Easy assembly by thumb pressure! The rivets provide a cheap way to fasten metal, plastic, timber and other thin-walled materials. Resistant to vibrations, abrasion and corrosion. Reusable! Can also be used as a plug or cap.
€0.15
from 100
€0.15 / piece
from 200
€0.14 / piece
from 500
€0.12 / piece
from 1000
€0.08 / piece
Minimum order quantity: 100
RoHS
RoHS compliant
colour
white
country of origin
Italy
customs tariff number
39269097
material
PA 6.6
previous part number
0910004000
weight
0,22 g
bore diameter
5,0 mm
head diameter
9,5 mm
head height
1,6 mm
head shape
slightly doomed
immersion depth
11 mm
material thickness
1,5 - 3,5 mm
shape
drive fasteners
stem form
with snap-in function

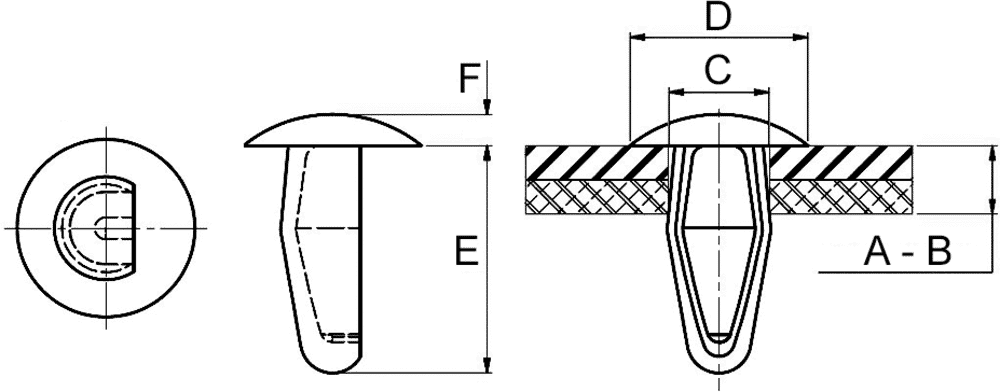

A - B
1,5-3,5 mm
C
5,0 mm
D
9,5 mm
E
11,0 mm
F
1,6 mm
Datenblatt 300012537
Scheda tecnica 300012537
Fiche technique 300012537
Datasheet 300012537
