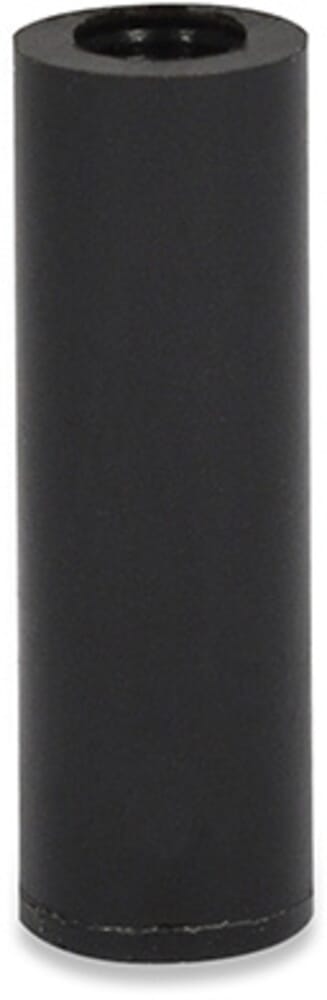

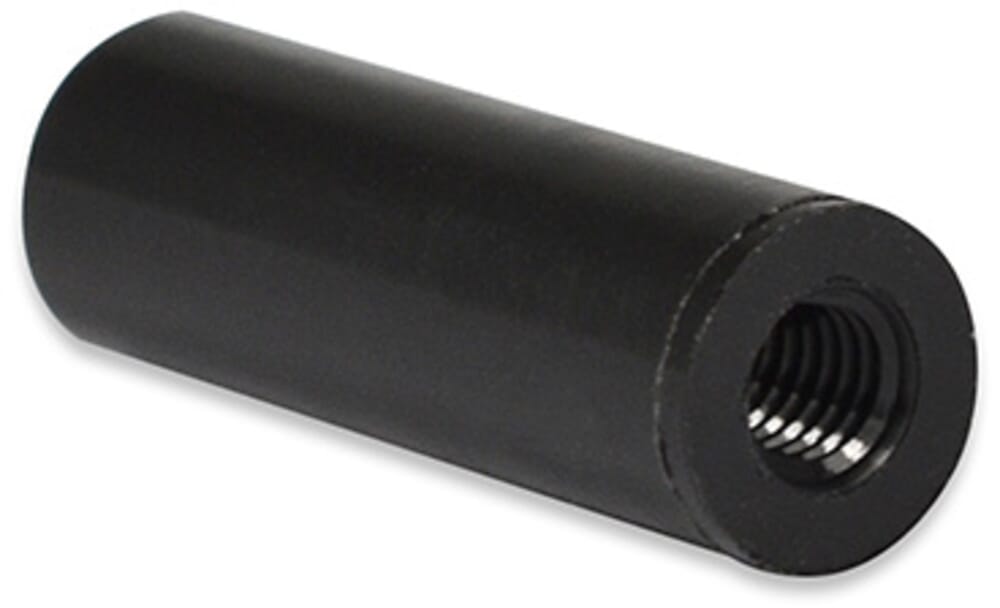

Spacers M4 L=6 mm
PA glass fibre reinforced 25, black
Part no. 300001593 / Old item number: 0021106
Temperature-resistant until 110°C.
If L Thread length I = continuous
If L = 16-20 mm -> 1 mm centre bar
If L >/= 21 mm -> Thread length I = 10 mm
€0.74
from 100
€0.74 / piece
from 200
€0.66 / piece
from 500
€0.56 / piece
from 1000
€0.39 / piece
Minimum order quantity: 100
RoHS
RoHS compliant
colour
black
country of origin
Germany
customs tariff number
39269097
material
PA glass fibre reinforced 25
previous part number
0021106
weight
0,298 g
external diameter
8,0 mm
height
6 mm
internal thread length
6 mm
shape
round
thread size
M4
thread type
internal thread
version
internal thread (on both sides) – round outside

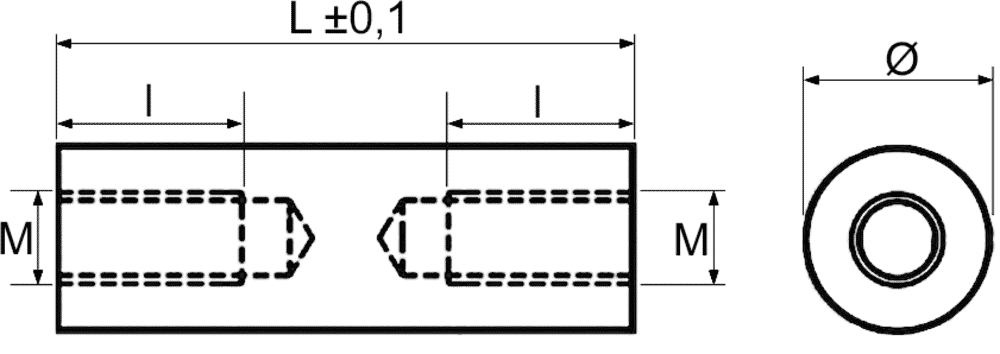

L
6,0 mm
M
M4
Ø
8,0 mm
