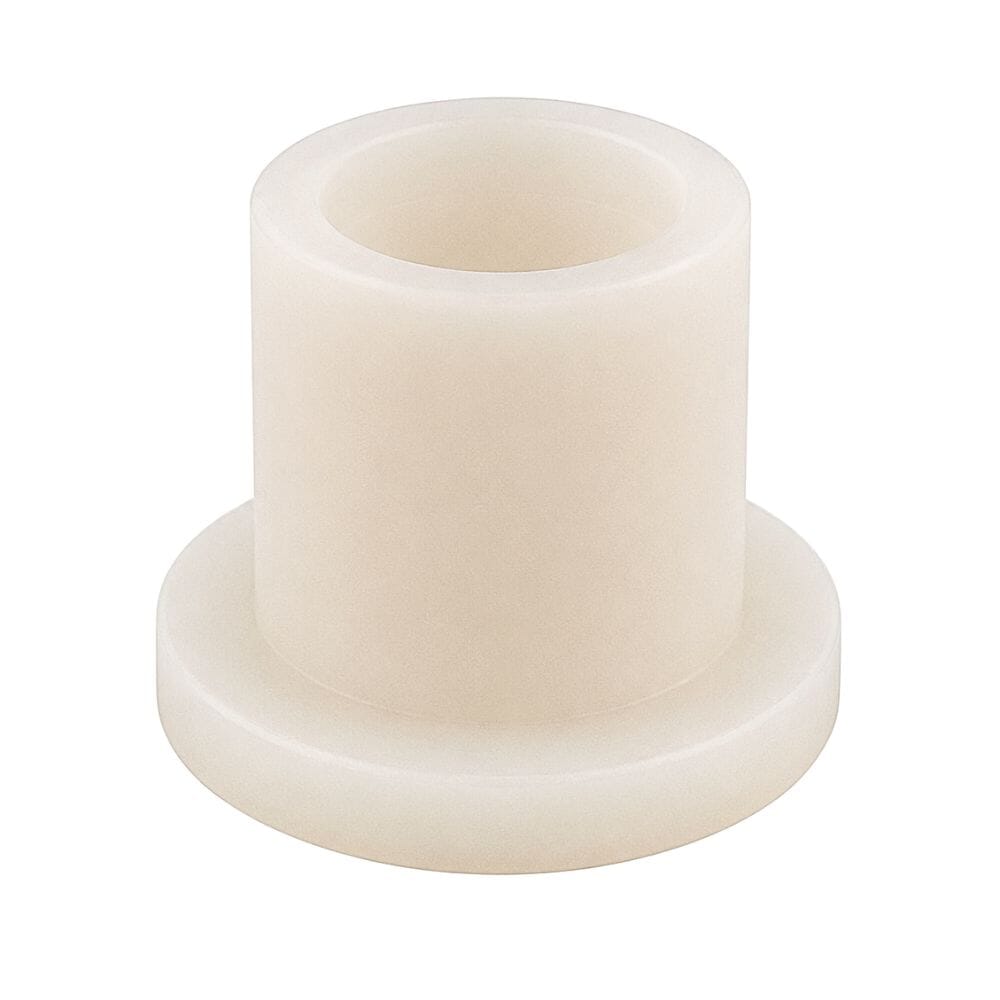

Bush bearings 50x56x50
PA 6.6, natural
Part no. 300002687 / Old item number: 0085000
Suitable for all rotating and moving parts. Ideal for silent hinges and low-speed machines. Electrical insulation between shaft and bearing housing. Due to its gliding properties and high wear resistance, polyamide is also very applicable during dry running. Resistant to fouling, atmospheric influences and to the majority of chemicals. After assembly the bearing clearance is approx. 1% of the shaft diameter.
RoHS
RoHS compliant
colour
natural
country of origin
Netherlands
customs tariff number
39269097
material
PA 6.6
previous part number
0085000
weight
30,8 g
collar diameter
67 mm
collar height
3,5 mm
external diameter
56,0 mm
height
50 mm
internal diameter
50,0 mm
version
with collar
