back to products
Distanzhülsen 12x6,4x10
Distanzhülsen 12x6,4x10 Distanzhülsen 40x16x35

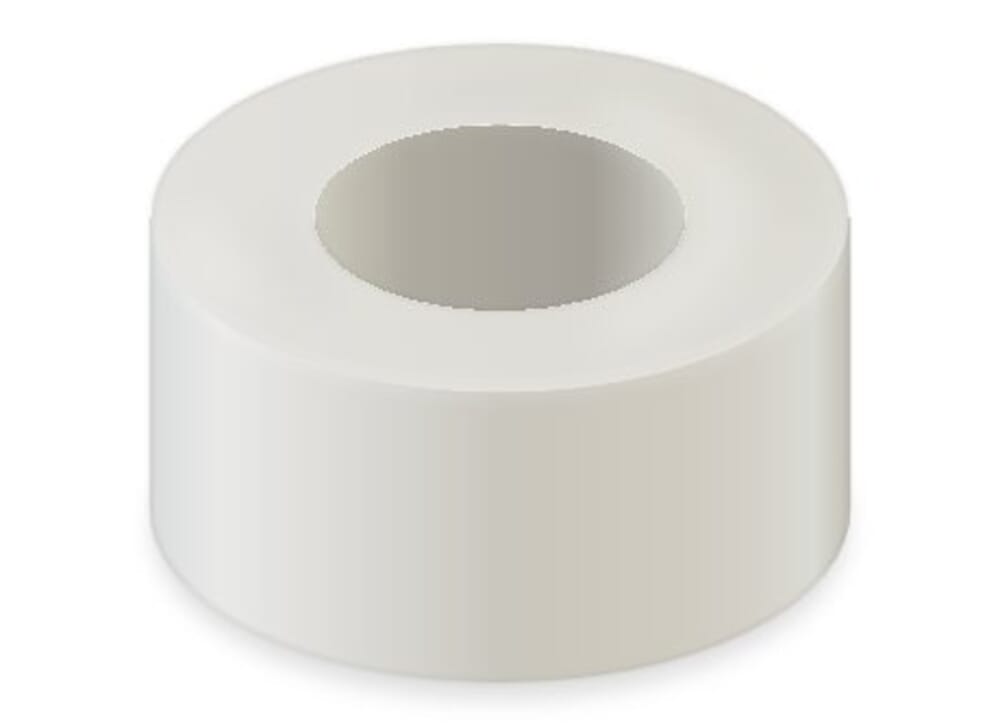

Spacers 12x6,4x10

PA 6, natural

Part no. 300004361 / Old item number: 05-12-6,4-10

High-quality spacers made of PA 6 in the dimensions 12x6,4x10 - manufactured in Germany. The spacer sleeves can be integrated into a wide variety of components as a distance piece. The low weight and robustness of the sleeves make it easy to attach. Thanks to the PA 6 material, the spacers are very durable. The natural colour blends in visually with any design. Thanks to RoHS conformity, the sleeves are guaranteed to be free from harmful substances.

Please note: Not a stock item. This item is manufactured upon request

€0.16
excl. VAT and delivery costs
from 1000
€0.16 / piece
from 5000
€0.07 / piece
from 10000
€0.06 / piece
from 50000
€0.06 / piece
from 100000
€0.06 / piece
Minimum order quantity: 1000
Request samples
RoHS
RoHS compliant
colour
natural
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-12-6,4-10
weight
0,92 g
external diameter
12,0 mm
flammability
UL 94 V-2
height
10 mm
internal diameter
6,4 mm
shape
round
version
standard
A
12,0 mm
B
6,4 mm
C
10,0 mm
Datenblatt 300004361
Download
Scheda tecnica 300004361
Download
Fiche technique 300004361
Download
Datasheet 300004361
Download
from 1000
€0.16 / piece
from 5000
€0.07 / piece
from 10000
€0.06 / piece
from 50000
€0.06 / piece
from 100000
€0.06 / piece
