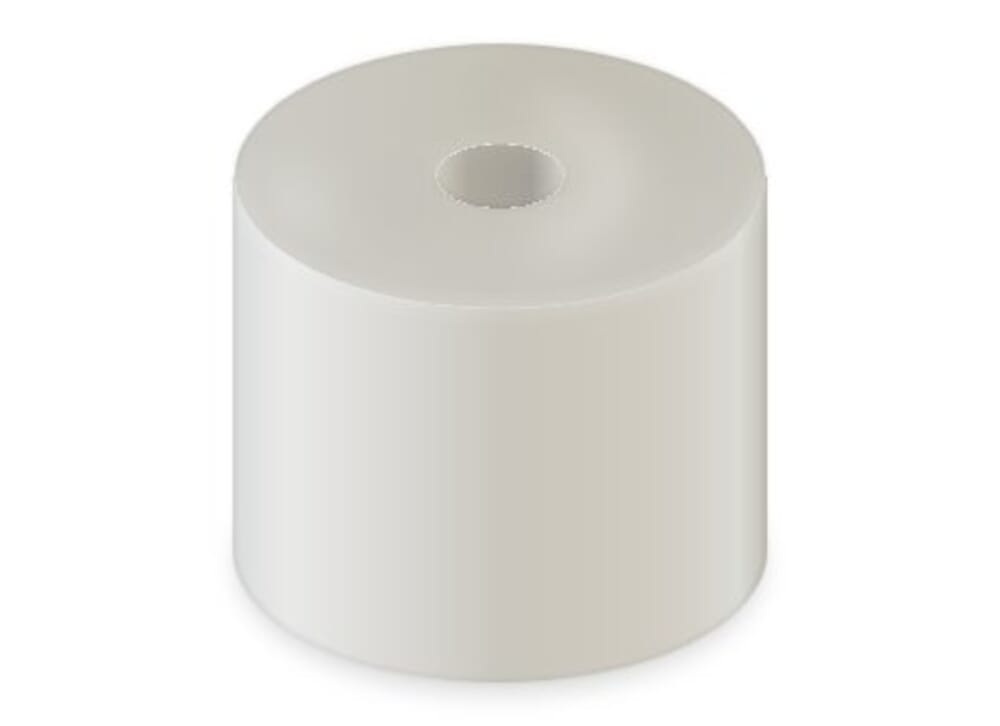

Spacers 22x5,3x31
PA 6, natural
Part no. 300007045 / Old item number: 05-22-5,3-31
High-quality spacers made of PA 6 in the dimensions 22x5,3x31 - manufactured in Germany. The spacer sleeves can be integrated into a wide variety of components as a distance piece. The low weight and robustness of the sleeves make it easy to attach. Thanks to the PA 6 material, the spacers are very durable. The natural colour blends in visually with any design. Thanks to RoHS conformity, the sleeves are guaranteed to be free from harmful substances.
Please note: Not a stock item. This item is manufactured upon request
€0.52
from 1000
€0.52 / piece
from 5000
€0.40 / piece
from 10000
€0.39 / piece
from 50000
€0.39 / piece
from 100000
€0.39 / piece
Minimum order quantity: 1000
RoHS
RoHS compliant
colour
natural
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-22-5,3-31
weight
12,65 g
external diameter
22,0 mm
flammability
UL 94 V-2
height
31 mm
internal diameter
5,3 mm
shape
round
version
standard
A
22,0 mm
B
5,3 mm
C
31,0 mm
Datenblatt 300007045
Scheda tecnica 300007045
Fiche technique 300007045
Datasheet 300007045
