Distanzhülsen 24x14,6x5
Distanzhülsen 24x14,6x5 Distanzhülsen 40x16x35

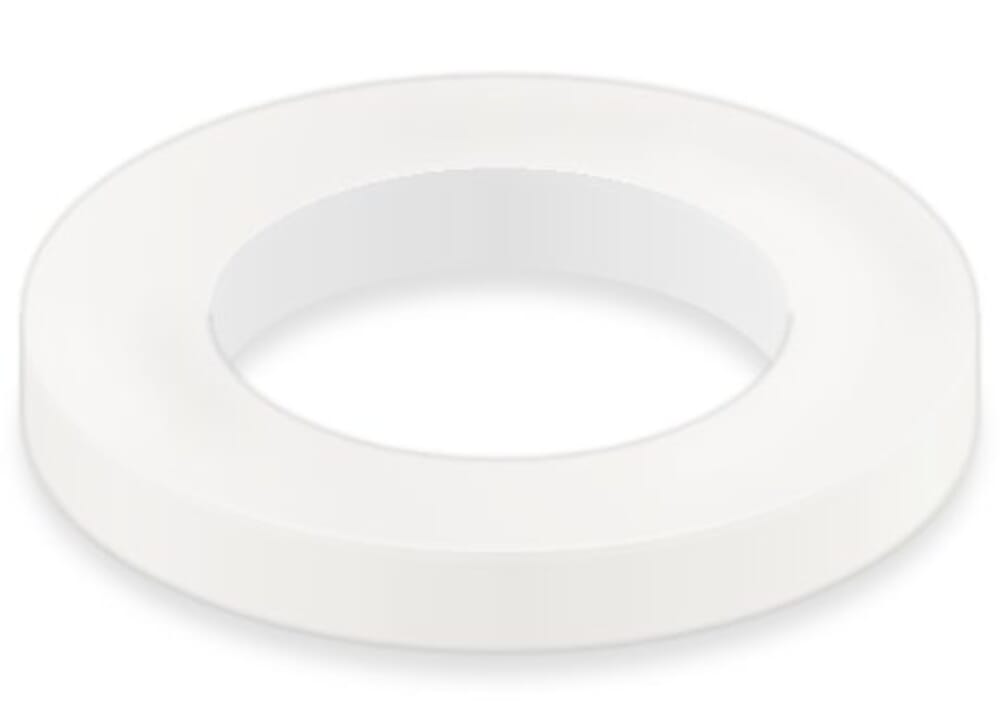

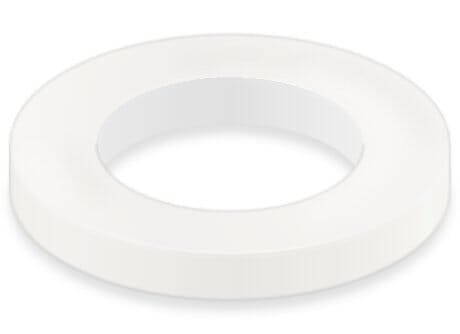

Spacers 24x14,6x5

PA 6, white

Part no. 300007698 / Old item number: 05-24-14,5-5W

Spacers in the dimensions 24x14,6x5 - versatile distance pieces for various applications. Lightweight yet robust: despite its low weight, the spacers offer high stability and load-bearing capacity thanks to the PA 6 material. The neutral white colour blends in with any design. Made in Germany: Our spacer sleeves are manufactured in Germany and meet the highest quality standards. They are also RoHS compliant.

Please note: Not a stock item. This item is manufactured upon request

€0.19
excl. VAT and delivery costs
from 1000
€0.19 / piece
from 5000
€0.11 / piece
from 10000
€0.10 / piece
from 50000
€0.10 / piece
from 100000
€0.10 / piece
Minimum order quantity: 1000
Request samples
RoHS
RoHS compliant
colour
white
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-24-14,5-5W
weight
1,62 g
external diameter
24,0 mm
flammability
UL 94 V-2
height
5 mm
internal diameter
14,6 mm
shape
round
version
standard
A
24,0 mm
B
14,6 mm
C
5,0 mm
Datenblatt 300007698
Download
Scheda tecnica 300007698
Download
Fiche technique 300007698
Download
Datasheet 300007698
Download
