Distanzhülsen 24x6,4x9
Distanzhülsen 24x6,4x9 Distanzhülsen 40x16x35

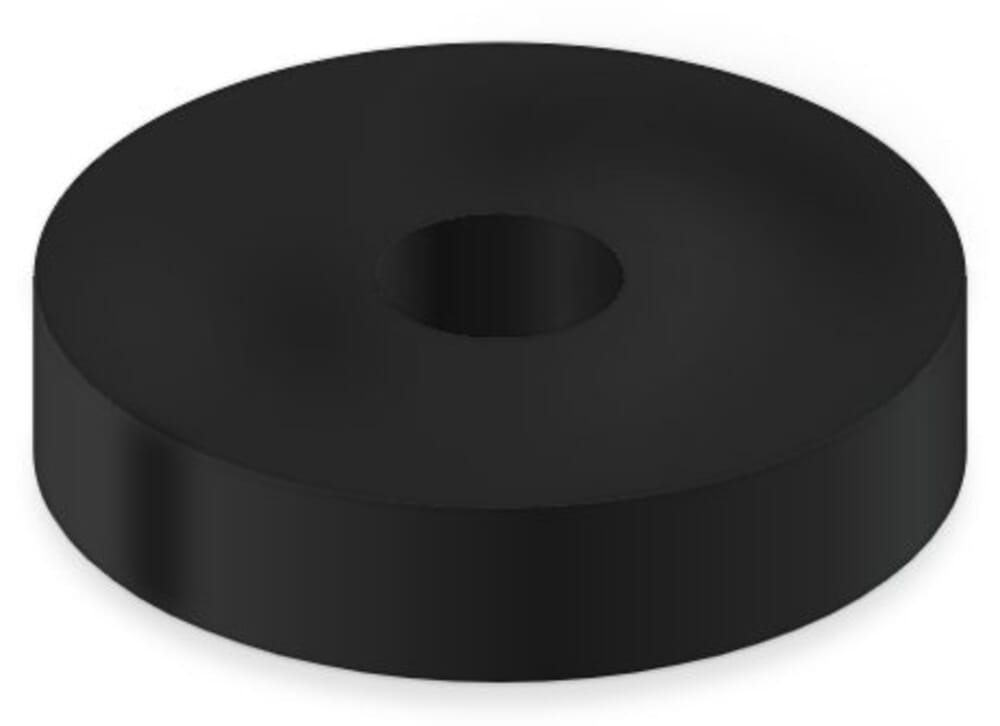

Spacers 24x6,4x9

PA 6, black

Part no. 300008024 / Old item number: 05-24-6,4-9S

PA 6 spacers black in the dimensions 24x6,4x9 - the ideal solution for reliable and precise distance adjustment between different components. Thanks to their low weight, they are easy and simple to handle. Quality from Germany: emico spacer sleeves are manufactured in Germany and meet the highest quality standards. The first-class PA 6 material guarantees a long service life. The spacers are also RoHS compliant.

Please note: Not a stock item. This item is manufactured upon request

€0.30
excl. VAT and delivery costs
from 1000
€0.30 / piece
from 5000
€0.21 / piece
from 10000
€0.20 / piece
from 50000
€0.20 / piece
from 100000
€0.19 / piece
Minimum order quantity: 1000
Request samples
RoHS
RoHS compliant
colour
black
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-24-6,4-9S
weight
4,31 g
external diameter
24,0 mm
flammability
UL 94 V-2
height
9 mm
internal diameter
6,4 mm
shape
round
version
standard
A
24,0 mm
B
6,4 mm
C
9,0 mm
Datenblatt 300008024
Download
Scheda tecnica 300008024
Download
Fiche technique 300008024
Download
Datasheet 300008024
Download
from 1000
€0.30 / piece
from 5000
€0.21 / piece
from 10000
€0.20 / piece
from 50000
€0.20 / piece
from 100000
€0.19 / piece
