Spacers 28x10,5x14
PA 6, natural
Part no. 300008563 / Old item number: 05-28-10,5-14

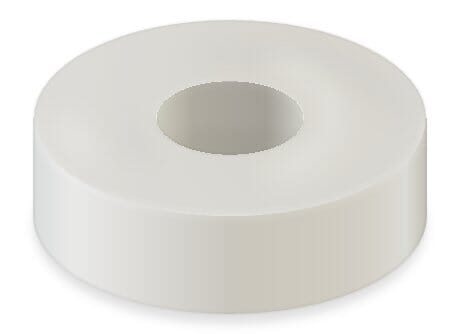

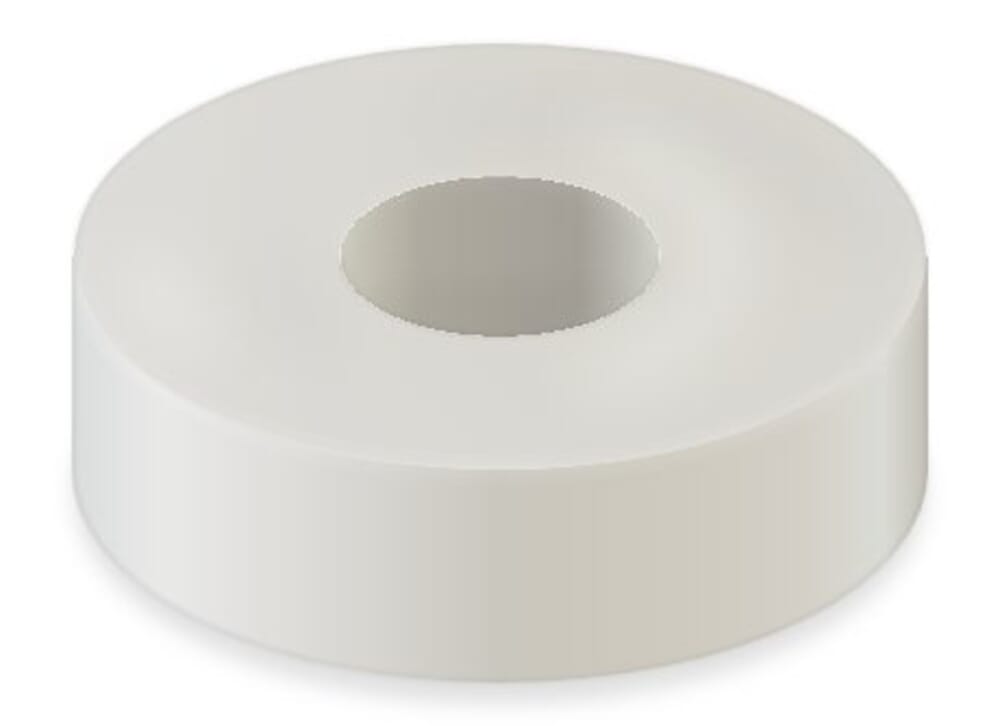

High-quality spacers made of PA 6 in the dimensions 28x10,5x14 - manufactured in Germany. The spacer sleeves can be integrated into a wide variety of components as a distance piece. The low weight and robustness of the sleeves make it easy to attach. Thanks to the PA 6 material, the spacers are very durable. The natural colour blends in visually with any design. Thanks to RoHS conformity, the sleeves are guaranteed to be free from harmful substances.
Please note: Not a stock item. This item is manufactured upon request
€0.50
from 1000
€0.50 / piece
from 5000
€0.39 / piece
from 10000
€0.38 / piece
from 50000
€0.38 / piece
from 100000
€0.38 / piece
Minimum order quantity: 1000
RoHS
RoHS compliant
colour
natural
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-28-10,5-14
weight
8,45 g
external diameter
28,0 mm
flammability
UL 94 V-2
height
14 mm
internal diameter
10,5 mm
shape
round
version
standard
A
28,0 mm
B
10,5 mm
C
14,0 mm
Datenblatt 300008563
Scheda tecnica 300008563
Fiche technique 300008563
Datasheet 300008563
