Distanzhülsen 28x12,6x13
Distanzhülsen 28x12,6x13 Distanzhülsen 40x16x35

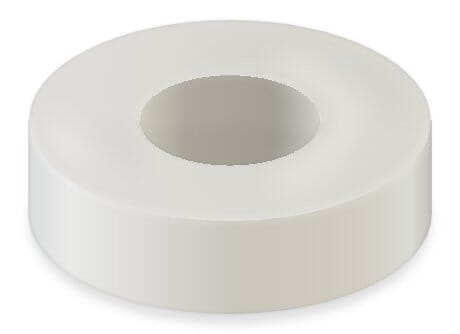

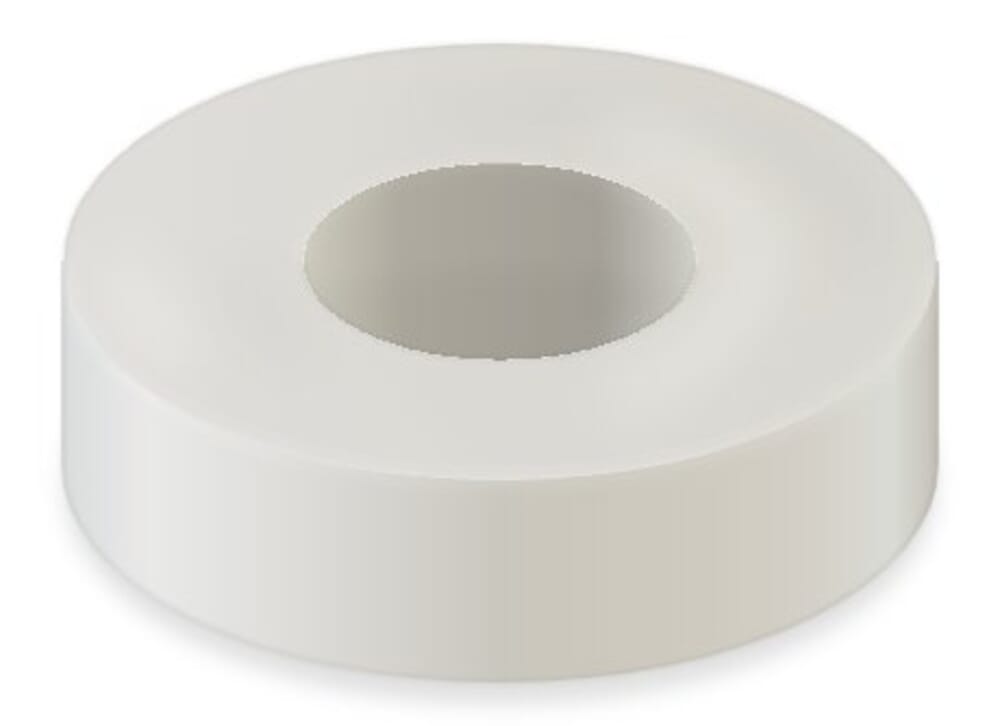

Spacers 28x12,6x13

PA 6, natural

Part no. 300008770 / Old item number: 05-28-12,5-13

High-quality spacers made of PA 6 in the dimensions 28x12,6x13 - manufactured in Germany. The spacer sleeves can be integrated into a wide variety of components as a distance piece. The low weight and robustness of the sleeves make it easy to attach. Thanks to the PA 6 material, the spacers are very durable. The natural colour blends in visually with any design. Thanks to RoHS conformity, the sleeves are guaranteed to be free from harmful substances.

Please note: Not a stock item. This item is manufactured upon request

€0.45
excl. VAT and delivery costs
from 1000
€0.45 / piece
from 5000
€0.34 / piece
from 10000
€0.34 / piece
from 50000
€0.33 / piece
from 100000
€0.33 / piece
Minimum order quantity: 1000
Request samples
RoHS
RoHS compliant
colour
natural
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-28-12,5-13
weight
7,28 g
external diameter
28,0 mm
flammability
UL 94 V-2
height
13 mm
internal diameter
12,6 mm
shape
round
version
standard
A
28,0 mm
B
12,6 mm
C
13,0 mm
Datenblatt 300008770
Download
Scheda tecnica 300008770
Download
Fiche technique 300008770
Download
Datasheet 300008770
Download
from 1000
€0.45 / piece
from 5000
€0.34 / piece
from 10000
€0.34 / piece
from 50000
€0.33 / piece
from 100000
€0.33 / piece
