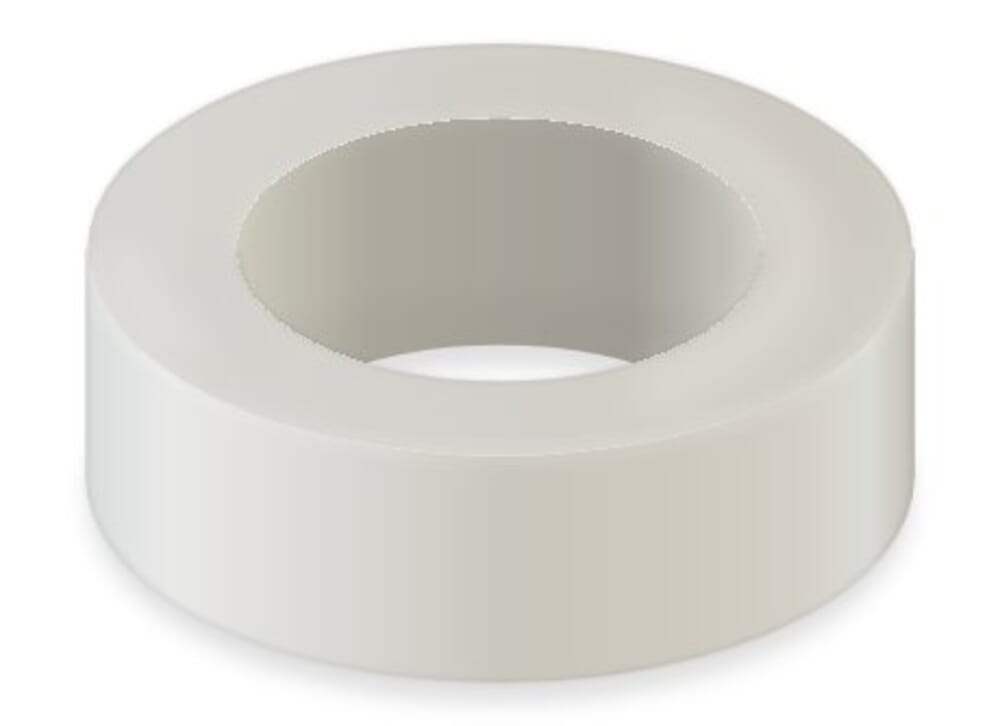

Spacers 40x25,5x22
PA 6, natural
Part no. 300010164 / Old item number: 05-40-25,5-22
High-quality spacers made of PA 6 in the dimensions 40x25,5x22 - manufactured in Germany. The spacer sleeves can be integrated into a wide variety of components as a distance piece. The low weight and robustness of the sleeves make it easy to attach. Thanks to the PA 6 material, the spacers are very durable. The natural colour blends in visually with any design. Thanks to RoHS conformity, the sleeves are guaranteed to be free from harmful substances.
Please note: Not a stock item. This item is manufactured upon request
€0.75
from 1000
€0.75 / piece
from 5000
€0.63 / piece
from 10000
€0.62 / piece
from 50000
€0.61 / piece
from 100000
€0.61 / piece
Minimum order quantity: 1000
RoHS
RoHS compliant
colour
natural
country of origin
Germany
customs tariff number
39269097
material
PA 6
previous part number
05-40-25,5-22
weight
18,71 g
external diameter
40,0 mm
flammability
UL 94 V-2
height
22 mm
internal diameter
25,5 mm
shape
round
version
standard
A
40,0 mm
B
25,5 mm
C
22,0 mm
Datenblatt 300010164
Scheda tecnica 300010164
Fiche technique 300010164
Datasheet 300010164
