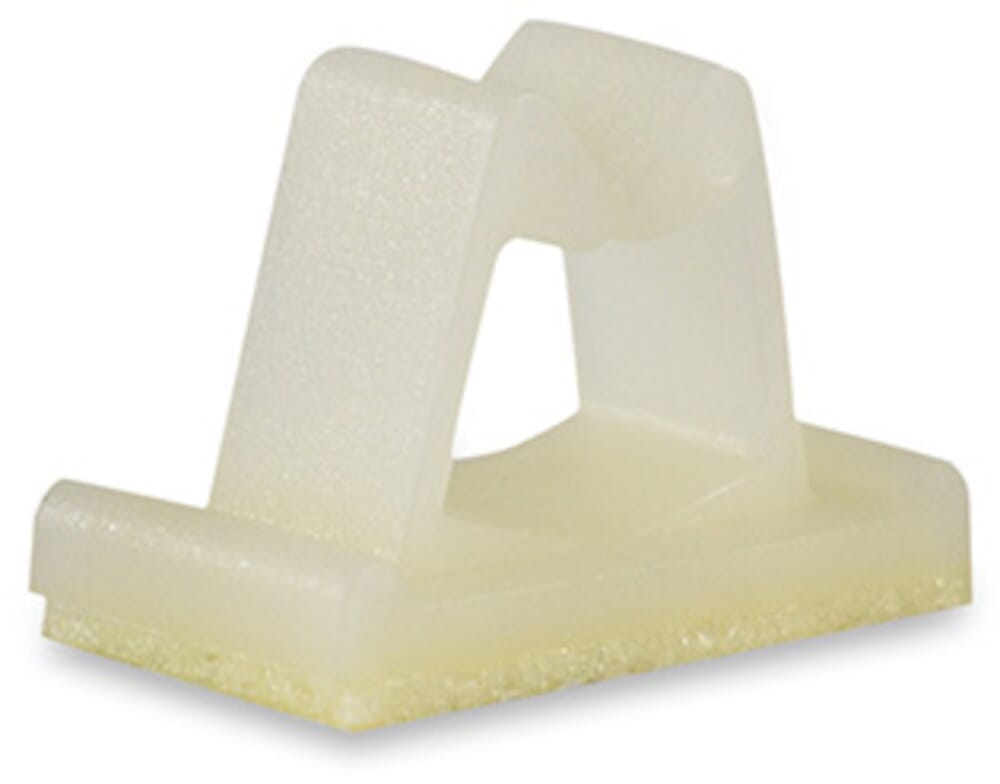

Mini cable clip 7,0 mm
PA 6.6, natural
Part no. 300013491 / Old item number: 1150001
Strong adhesion for a quick and easy bundling and installation of wires, cables and cable looms. Also suitable for heavy cables. The surface to be glued on has to be free of dust and fat, and must be even and dry. The optimal sticking temperature is between + 18°C and + 25°C.
€0.96
from 50
€0.96 / piece
from 100
€0.81 / piece
from 200
€0.73 / piece
from 500
€0.62 / piece
from 1000
€0.43 / piece
Minimum order quantity: 50
RoHS
RoHS compliant
colour
natural
country of origin
Taiwan
customs tariff number
39269097
material
PA
material 2
PE adhesive film up to 65°C (high initial adhesion)
previous part number
1150001
weight
6 g
depth
9 mm
internal height
6,0 mm
internal width
7,0 mm
version
without locking
width
18 mm

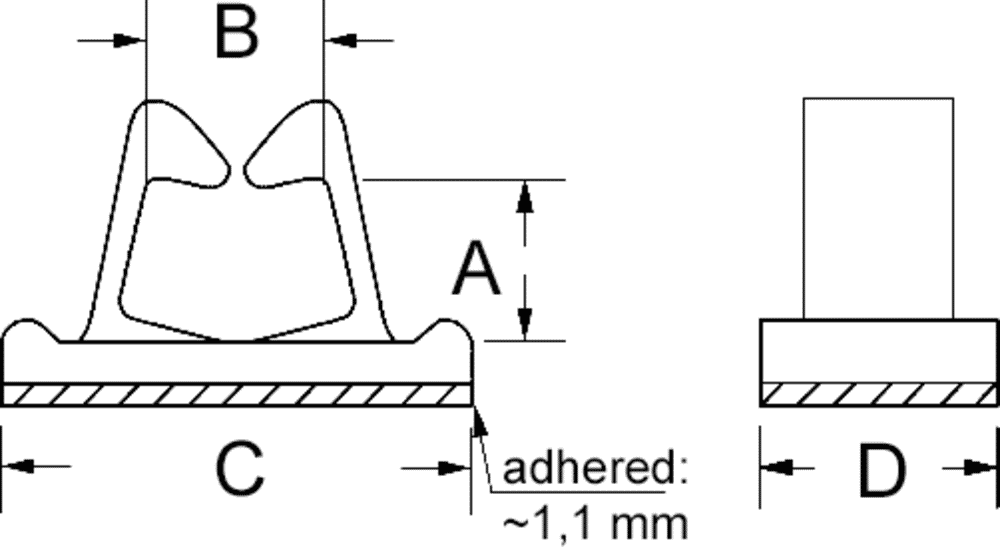

A
6,0 mm
B
7,0 mm
C
18,0 mm
D
9,0 mm
Datenblatt 300013491
Scheda tecnica 300013491
Fiche technique 300013491
Datasheet 300013491
