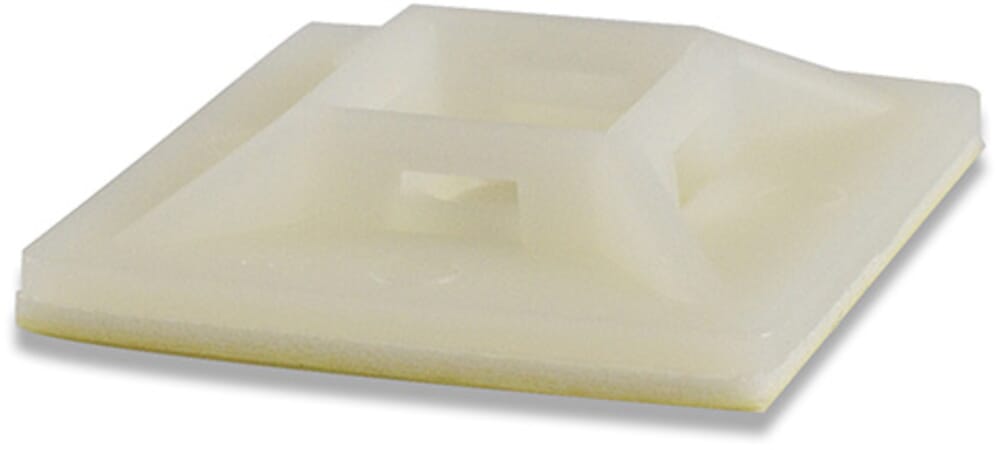

Kabelbindersockel 8,0 mm
Kabelbindersockel 8,0 mm Kabelbindersockel 8,0 mm

Mount for cable ties 4,8 mm

PA 6.6, natural

Part no. 300012800 / Old item number: 0980048

Temperature adhesive film: max. 50 °C. Panel hole for optional screw fixing. --- The type of cable mount depends on the manufacturer's choice --- The surface to be glued on has to be free of dust and fat, and must be even and dry. The optimal sticking temperature is between + 18°C and + 25°C.

€0.65
excl. VAT and delivery costs
from 50
€0.65 / piece
from 100
€0.55 / piece
from 200
€0.49 / piece
from 500
€0.42 / piece
from 1000
€0.29 / piece
Minimum order quantity: 50
Request samples
RoHS
RoHS compliant
colour
natural
country of origin
China (People's Republic)
customs tariff number
39269097
material
PA 6.6
previous part number
0980048
weight
1,9 g
bore diameter
4,8 mm
height
6,5 mm
length
27 mm
width of lead-through
4,8 mm
A
4,8 mm
B
6,0 mm
C
6,5 mm
D
27,0 mm
Y
4,8 mm
Datenblatt 300012800
Download
Scheda tecnica 300012800
Download
Fiche technique 300012800
Download
Datasheet 300012800
Download
from 50
€0.65 / piece
from 100
€0.55 / piece
from 200
€0.49 / piece
from 500
€0.42 / piece
from 1000
€0.29 / piece
