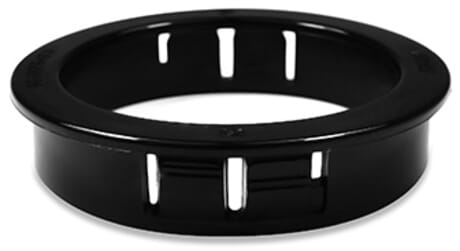

Snap-fit bushes Ø 28,0 x 3,2
PA 6.6, black
Part no. 300003556 / Old item number: 0400034
For the mounting in drilled or stamped holes. Withstand a pull-out strength up to 155N. Protect cables and hoses. Easy, quick and safe. Max. service temperature: +105°C Flammability: UL 94V-2
€0.39
from 50
€0.39 / piece
from 100
€0.33 / piece
from 200
€0.30 / piece
from 500
€0.25 / piece
from 1000
€0.17 / piece
Minimum order quantity: 50
ECCN
ECCN/EAR99
RoHS
RoHS compliant
colour
black
country of origin
United States of America
customs tariff number
39269097
material
PA 6.6
previous part number
0400034
weight
2,07 g
assembly hole diameter
28,0 mm
collar height
1,6 mm
external diameter
30,9 mm
flammability
UL 94 V-2
height
11,5 mm
internal diameter
23,8 mm
max. wall thickness
3,2 mm

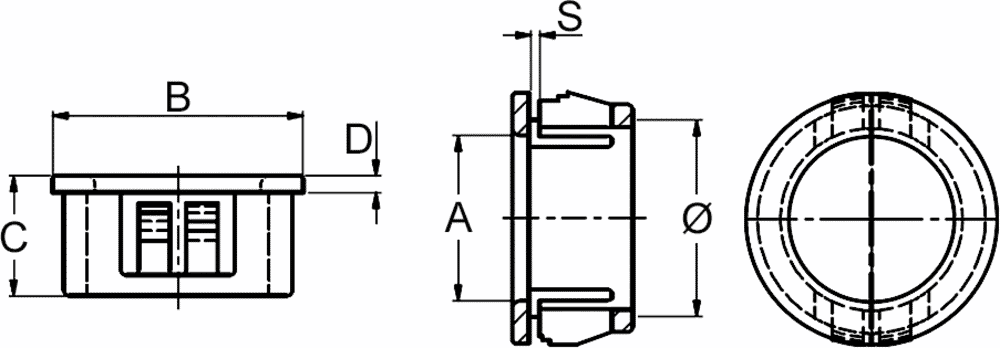

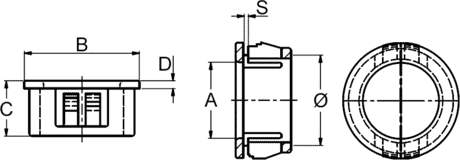

A
23,8 mm
B
30,9 mm
C
11,5 mm
D
1,6 mm
S
3,2 mm
Ø
28,0 mm
Datenblatt 300003556
Scheda tecnica 300003556
Fiche technique 300003556
Datasheet 300003556
