RoHS
RoHS compliant
colour
black
country of origin
Spain
customs tariff number
39269097
material
PA glass fibre reinforced
previous part number
6115620201
weight
75 g
bore diameter
8,4 mm
fastening
through hole
height
53 mm
height 1
40,0 mm
height 2
6,0 mm
hole spacing
200±1 mm
pipe diameter
20,0 mm

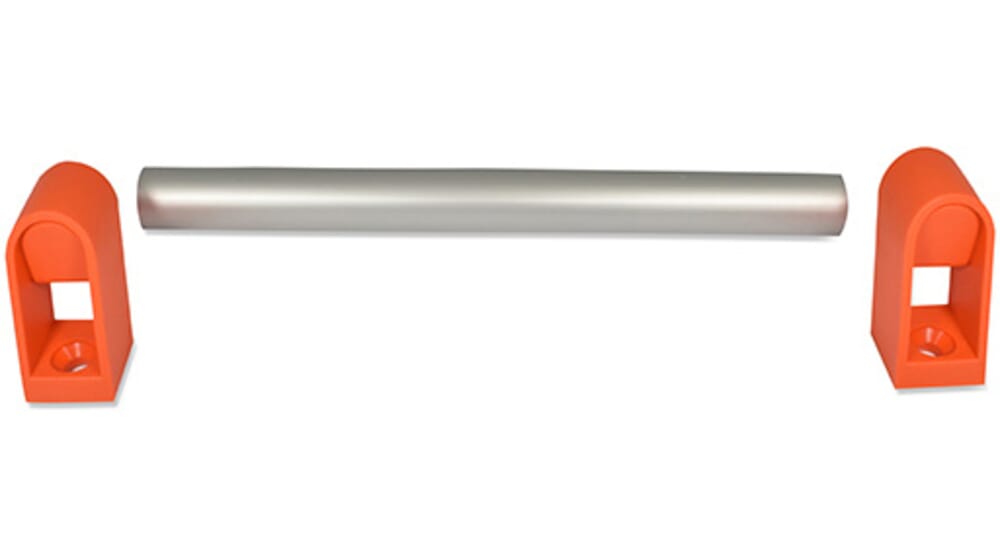

version
End cap
width
26 mm
width 1
23,0 mm
width 2
47,0 mm

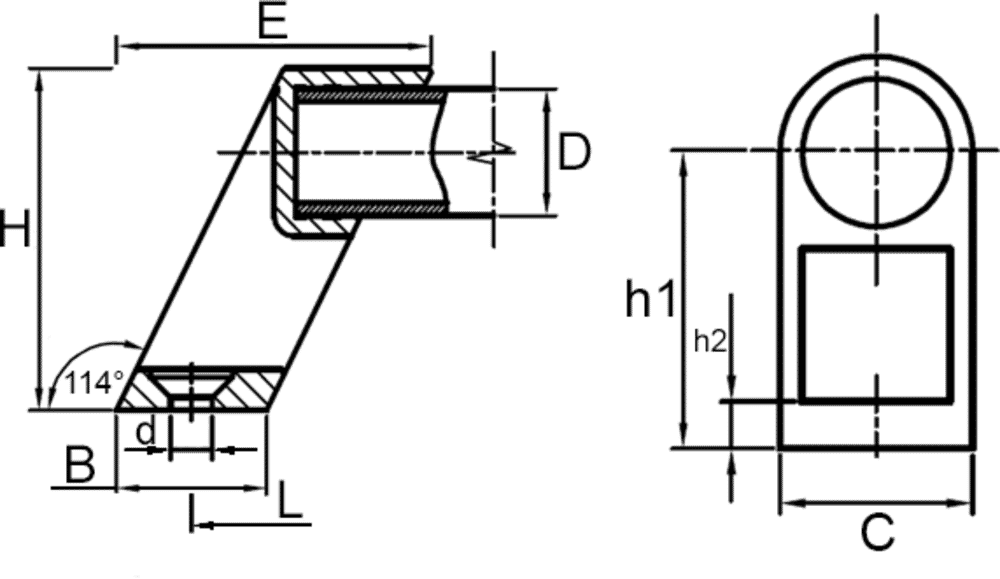

B
23,0 mm
C
26,0 mm
D
20,0 mm
H
53,0 mm
L
200±1 mm
d
8,4 mm
e
47,0 mm
h1
40,0 mm
h2
6,0 mm
