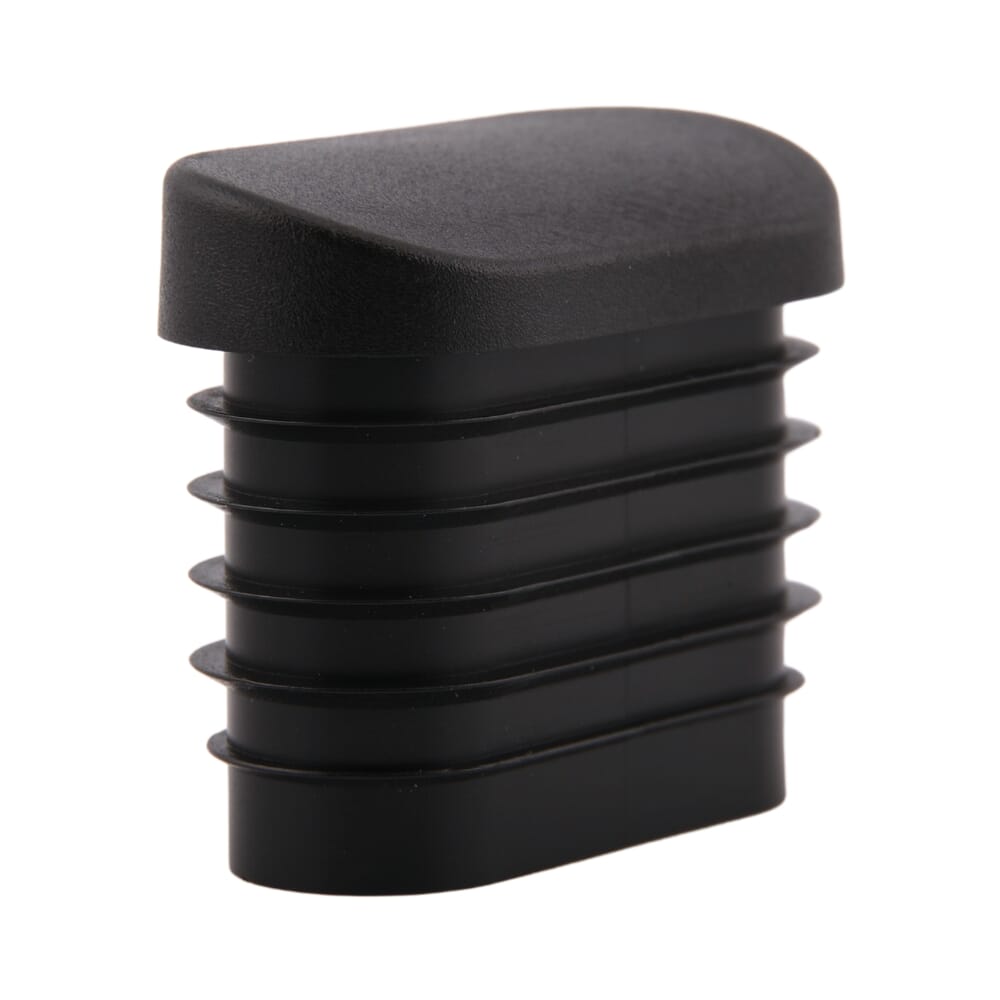

Lamellar plugs angular, oval 38x20x1-2
PE, black
Part no. 300011915 / Old item number: 0673820
Angular lamellar plugs with angular surface
€0.28
from 50
€0.28 / piece
from 100
€0.21 / piece
Minimum order quantity: 50
RoHS
RoHS compliant
colour
black
country of origin
Germany
customs tariff number
39263000
material
PE
previous part number
0673820
weight
6,1 g
angle
0-20 degree
external pipe dimension, long side
38 mm
external pipe dimension, short side
20 mm
height 1
8,0 mm
immersion depth
25 mm
pipe wall thickness
1,0 - 2,0 mm
shape
oval
version
angular

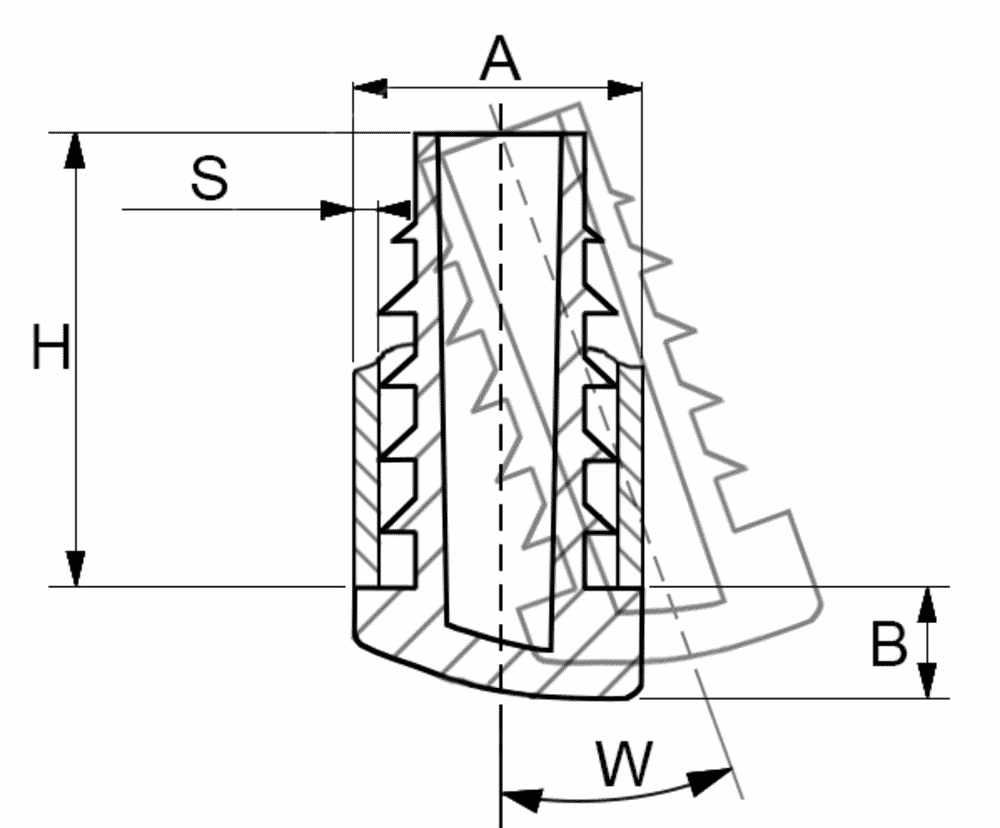

AxS
38x20x1-2 mm
B
8,0 mm
H
25,0 mm
W°
0-20
Datenblatt 300011915
Scheda tecnica 300011915
Fiche technique 300011915
Datasheet 300011915
