Lamellar plugs round 42x2,5-5
PE, black
Part no. 300012265 / Old item number: 0850425
The surface of the lamellar plugs has - at the discretion of the manufacturer - a smooth or a spark-erosion structure. The ribs (continuous or discontinuous) are not suitable for sealing against liquids.
€0.43
from 50
€0.43 / piece
from 100
€0.36 / piece
from 200
€0.32 / piece
from 500
€0.27 / piece
from 1000
€0.19 / piece
Minimum order quantity: 50
RoHS
RoHS compliant
colour
black
country of origin
Germany
customs tariff number
39235010
material
PE
previous part number
0850425
weight
6,82 g
bore diameter
32,0 - 37,0 mm
head diameter
42 mm
head height
5 mm
head shape
flat
immersion depth
11,5 mm
lamella distance
3,0 mm
pipe external diameter
42 mm
pipe wall thickness
2,5 - 5,0 mm
shape
round
stem form
ribbed / lamellar
version
standard

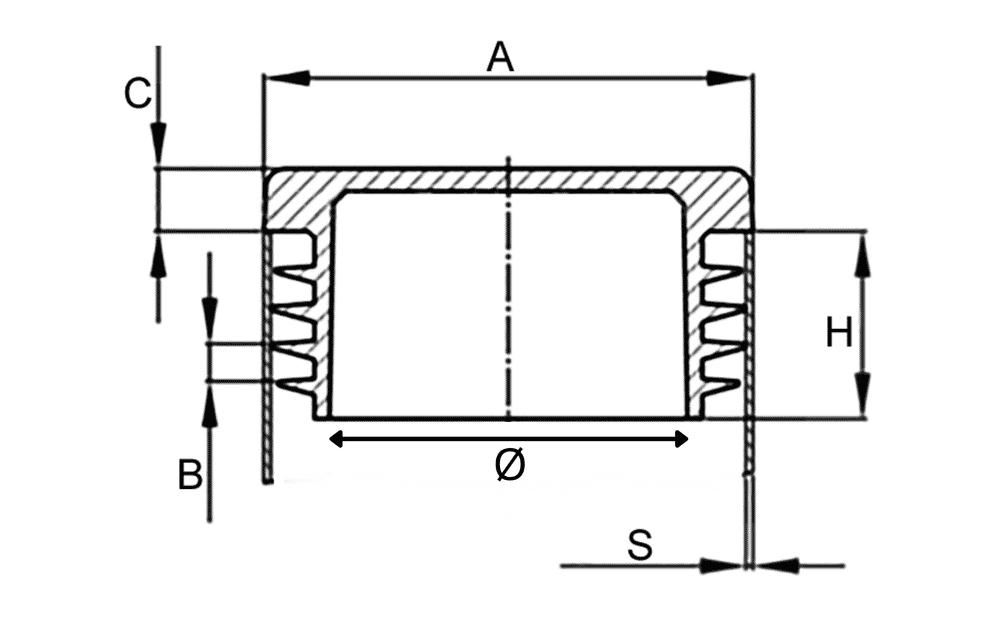

AxS
42x2,5-5 mm
B
3,0 mm
C
5,0 mm
H
11,5 mm
Ø
32,0 - 37,0 mm
Datenblatt 300012265
Scheda tecnica 300012265
Fiche technique 300012265
Datasheet 300012265
