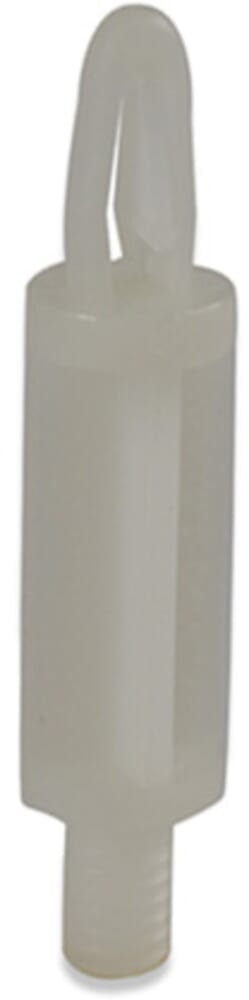

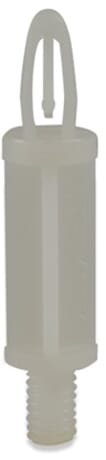

PCB supports 27,0
PA 6.6, natural
Part no. 300012849 / Old item number: 1001270
No screws or nuts necessary - simple "snap-on assembly"
€0.51
from 50
€0.51 / piece
from 100
€0.43 / piece
from 200
€0.38 / piece
from 500
€0.33 / piece
from 1000
€0.23 / piece
Minimum order quantity: 50
RoHS
RoHS compliant
colour
natural
country of origin
Netherlands
customs tariff number
39269097
material
PA 6.6
previous part number
1001270
weight
0,64 g
bore diameter
4,2 mm
height
27 mm
height 1
9,0 mm
material thickness 1
0,5-3,0 mm
material thickness 2
1,0-1,8 mm
shape
with snap connection and external thread M4
thread type
external thread M4

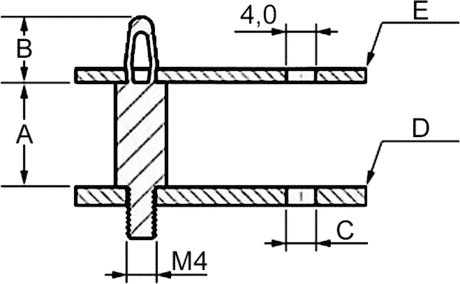

A
27,0 mm
B
9,0 mm
C
4,2 mm
D
0,5-3,0 mm
E
1,0-1,8 mm
