back to products
Leiterplattenhalter M4, L=61 mm

PCB supports M4, L=56 mm

PA 6.6 black

Part no. 300013285 / Old item number: 1006156

No screws or nuts necessary - simple "snap-on assembly"

€1.43
excl. VAT and delivery costs
from 100
€1.43 / piece
from 200
€1.27 / piece
from 500
€1.07 / piece
from 1000
€0.79 / piece
Minimum order quantity: 100
Request samples
RoHS
RoHS compliant
colour
black
country of origin
Germany
customs tariff number
39269097
material
PA
previous part number
1006156
height
56 mm
material thickness
1,6 mm
shape
with snap connection and internal thread M4
thread length
10,0 mm
thread type
internal thread M4

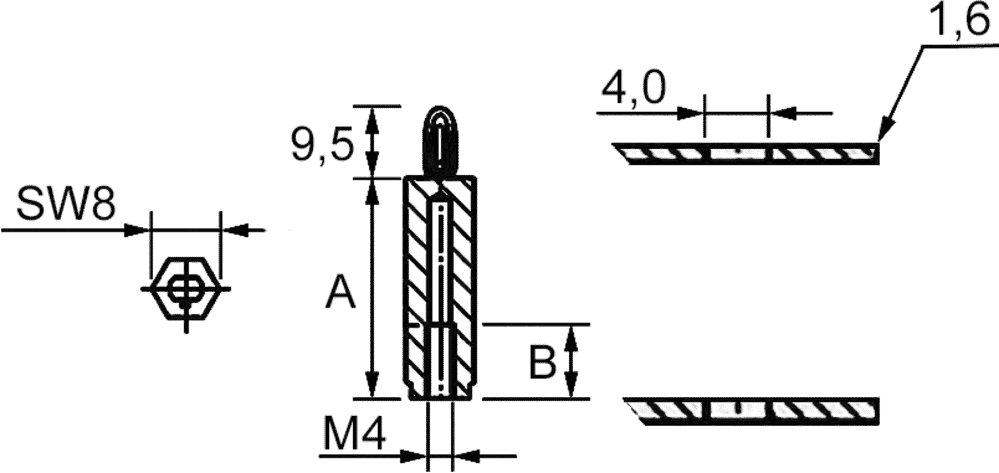

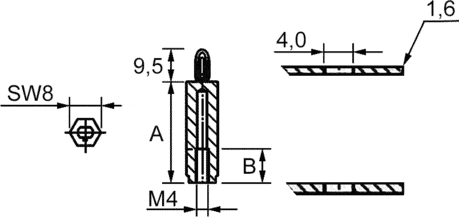

A
56,0 mm
B
10,0 mm
Datenblatt 300013285
Download
Scheda tecnica 300013285
Download
Fiche technique 300013285
Download
Datasheet 300013285
Download
from 100
€1.43 / piece
from 200
€1.27 / piece
from 500
€1.07 / piece
from 1000
€0.79 / piece
